4097 Interview Kit

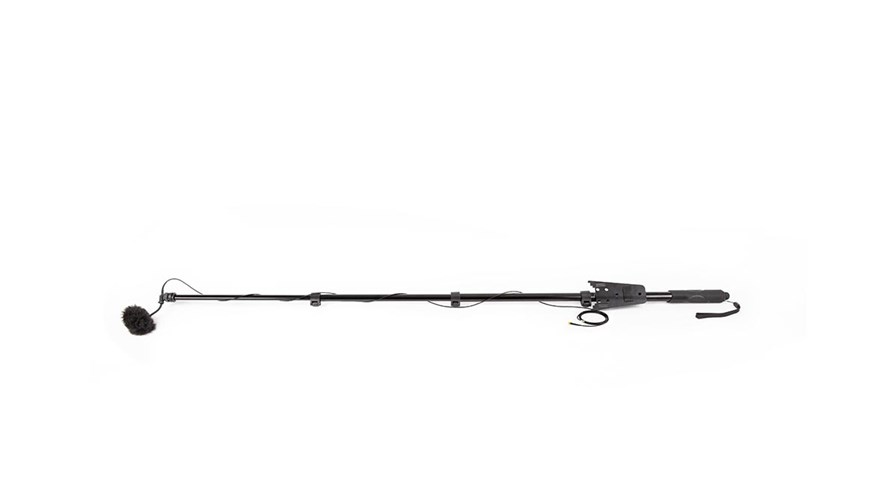

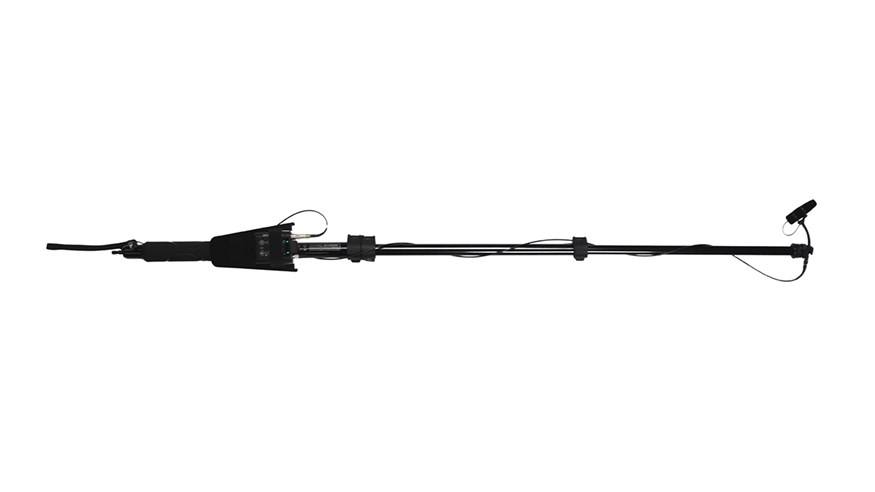

The 4097 CORE Interview Kit makes it easy to deliver great sound in challenging situations. It contains a 4097 CORE Shotgun Microphone, which shines in outdoor locations, handling inclement weather and limiting intrusive background noises. It’s a professional solution for professional broadcasters, who need amazing sound in a lightweight, small-footprint form factor.

Accessories

CM1618B90 MicroLock Extension Cable, 1.6 mm, 1.8 m (5.9 ft)
G-EXTENSION Gooseneck Extension with MicroLock 80 mm (3.15 in)
CM-CLIP Clamp Mount Microphone Clip
CS-CLIP Cold Shoe Microphone Clip with Standard 1/4 in Thread
P-CLIP Microphone Clip for Piano
U-CLIP Universal Microphone Clip

Specifications

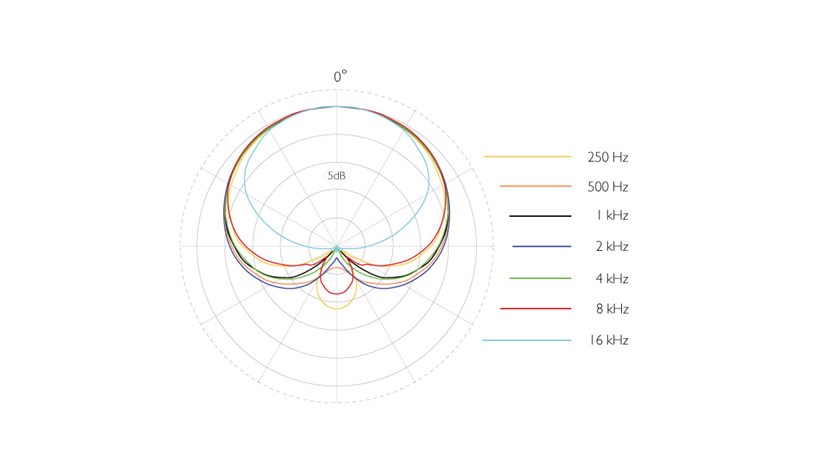

Polar pattern

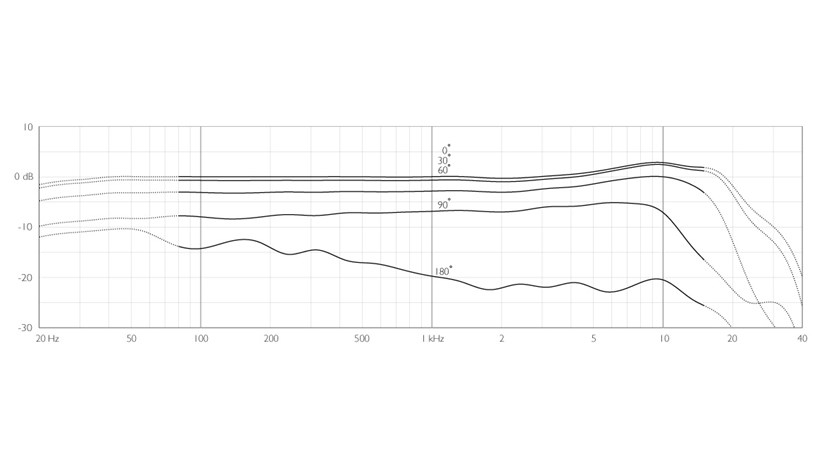

Frequency response graph

Directional pattern Supercardioid

Principle of operation Pressure gradient

Cartridge type Pre-polarized condenser

Frequency response 20 Hz - 20 kHz

Effective frequency range ±2 dB, at 20 cm (7.9 in) 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz

Sensitivity, nominal, ±3 dB at 1 kHz 16 mV/Pa; -36 dB re. 1 V/Pa

Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max 26 dB(A))

Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)

Distortion, THD < 1% 130 dB SPL RMS, 133 dB SPL peak

Dynamic range Typ. 110 dB

Max. SPL, THD 10% 135 dB SPL peak

Rated output impedance From MicroDot: 30 - 40 Ω. From DAD4099-BC XLR Adapter: 100 Ω

Cable drive capability Up to 300 m (984 ft) with DAD4099-BC XLR Adapter

Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD4099-BC XLR Adapter

Power supply (for full performance) For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Connector MicroDot

Weight 10 g (.35 oz)

Microphone length 10.4 cm (4 in)

Temperature range -40°C to 45°C (-40°F to 113°F)

Relative humidity (RH) Up to 90%
