4017 Shotgun Microphone

Designed for a broad range of applications, the 4017 Shotgun Mic is ideal for use with camera systems, in fixed positions at sports facilities, for broadcast / ENG / film booming and even studio recording environments.

Accessories

  • DAO4010/4020 Microphone Cable with Slim XLR Connector for Pencil Microphone
  • MMP-ER/ES Preamp with Modular Active XLR Cable for Pencil Microphone, 3 m (9.8 ft)
  • MMP-GR/GS Preamp with Modular Active MicroLock Cable for Pencil Microphone, 1.8 m (5.9 ft)
  • UA0639 Clip for Pencil Microphone
  • UA0897 Shock Mount for Pencil Microphone
  • DUA0073 Foam Windscreen for Shotgun Microphones

Specifications

Polar pattern

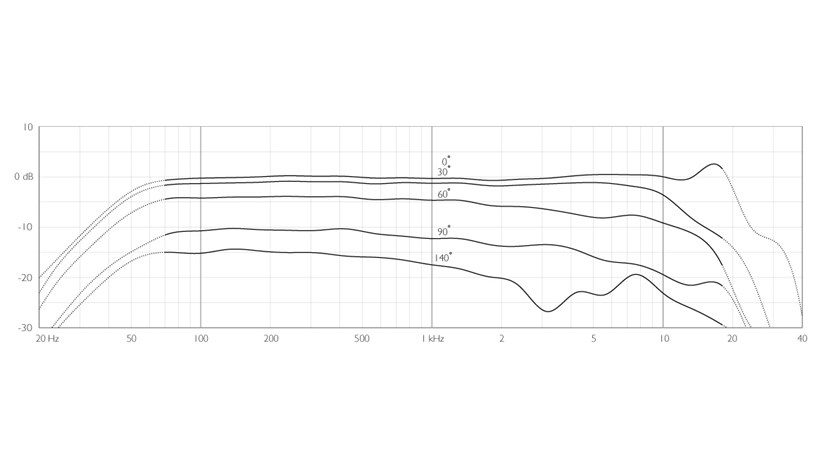

Frequency response graph
Directional pattern Supercardioid, lobe-shaped
Principle of operation Pressure gradient, with interference tube
Cartridge type Pre-polarized condenser
Frequency response 20 Hz - 20 kHz, permanent third order high pass filter at 50 Hz
Effective frequency range, ±2 dB, at 60 cm (23.6 in) 70 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz
Sensitivity, nominal, ±2 dB at 1 kHz 19 mV/Pa; -34.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 24 dB (max. 26 dB)
Distortion, THD < 1% 134 dB SPL RMS, 137 dB SPL peak
Dynamic range Typ. 124 dB
Max. SPL, THD 10% 138 dB SPL peak
Switchable attenuator, filters etc. High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
Rated output impedance 100 Ω
Minimum load impedance 2
Cable drive capability 100 m (328 ft)
Output balance principle Signal balanced
Common mode rejection ratio (CMRR) > 40 dB
Power supply (for full performance) P48 (Phantom Power)
Current consumption 4.5 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase
Weight 68 g (2.4 oz)
Microphone diameter 19 mm (0.75 in)
Capsule diameter 19 mm (0.75 in)
Microphone length 212 mm (8.3 in)
Maximum output voltage, RMS 2.0 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
