2017 Shotgun Microphone

Designed to excel at the challenging requirements of the broadcast industry, the 2017 is a reliable shotgun microphone, featuring durable construction and exceptional ease of use, combined with extraordinary acoustical properties. The 2017 performs both in fixed positions, on camera systems and on booms.

Accessories

UA0961 Microphone Holder for Pencil Microphones
DUA0073 Foam Windscreen for Shotgun Microphones

Whats in the box

2017 Shotgun Microphone

Microphone Holder

Foam Windscreen for 4017B and 2017 Shotgun Mic

Specifications

Polar pattern

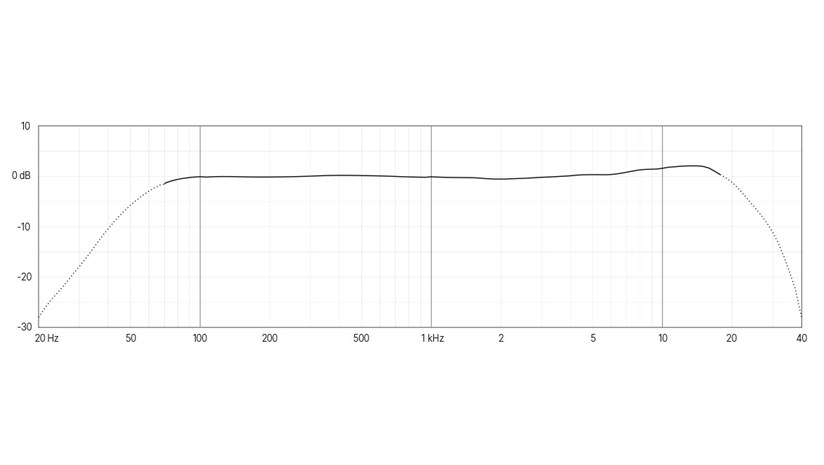

Frequency response graph

Directional pattern Supercardioid @1 kHz

Principle of operation Pressure gradient

Cartridge type Pre-polarized condenser

Frequency response 20 Hz - 20 kHz

Effective frequency range, ±2 dB, at 60 cm (23.6 in) 70 Hz to 18 kHz at 60 cm (23.6 in), with typ. 2 dB soft boost at 15 kHz

Sensitivity, nominal, ±2 dB at 1 kHz 25 mV/Pa; -32 dB re. 1 V/pa

Equivalent noise level, A-weighted Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A))

Distortion, THD < 1% 140 dB SPL, 143 dB SPL peak

Dynamic range Typ. 130 dB

Max. SPL, THD 10% 148 dB SPL peak

Rated output impedance 60 Ω

Minimum load impedance 2

Cable drive capability 100 m (328 ft)

Output balance principle Impedance balancing with Active Drive

Common mode rejection ratio (CMRR) > 60 dB

Power supply (for full performance) P48 (Phantom Power)

Current consumption 1.8 mA

Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Weight 115 g (4.1 oz)

Microphone diameter 19 mm (0.75 in)

Capsule diameter 17 mm (0.67 in)

Microphone length 184 mm (7.2 in)

Maximum output voltage, RMS 8.7 V (21 dBu)

Polarity +V at pin 2 for positive sound pressure

Temperature range -40°C to 45°C (-40°F to 113°F)

Relative humidity (RH) Up to 90%
