4018 Supercardioid Microphone

Designed for a broad range of long-distance broadcast, ENG and film miking applications, such as booming, dialogue, interview and table or podium use, the 4018 Supercardioid Microphone offers superb flexibility through modular accessories.

Accessories

MMP-GR/GS Preamp with Modular Active MicroLock Cable for Pencil Microphone, 1.8 m (5.9 ft)
GSM4000 Gooseneck Shock Mount for Pencil Microphone
SB0400/SBS0400 Lightweight Stereo Boom for Pencil Microphone
SM4000-C Suspension Mount for Pencil Mics with MMP-C Preamp
UA0639 Clip for Pencil Microphone
UA0836/837 Premium Stereo Boom for Pencil Microphone
UA0897 Shock Mount for Pencil Microphone
DUA0020 Foam Windscreen for Pencil Microphone, Ø19 mm, Length 56 mm (2.2 in)
UA0896 Foam Windscreen for Pencil Microphone, Ø19, Length 92 mm (3.6 in)

Specifications

Polar pattern

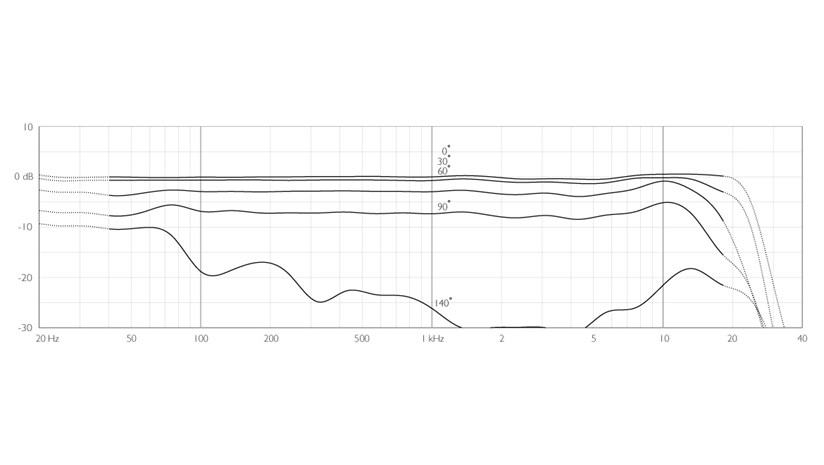

Frequency response graph

Directional pattern Supercardioid

Principle of operation Pressure gradient

Cartridge type Pre-polarized condenser

Frequency response 20 Hz - 20 kHz

Effective frequency range, ±2 dB, at 30 cm (11.8 in) 40 Hz - 18 kHz

Sensitivity, nominal, ±2 dB at 1 kHz 12 mV/Pa; -38.4 dB re. 1 V/Pa

Equivalent noise level, A-weighted Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))

Equivalent noise level, ITU-R BS.468-4 Typ. 23 dB

Distortion, THD < 1% 134 dB SPL RMS, 137 dB SPL peak

Dynamic range Typ. 121 dB

Max. SPL, THD 10% 142 dB SPL peak

Rated output impedance 100 Ω

Minimum load impedance 2

Cable drive capability 100 m (328 ft)

Output balance principle Impedance balancing

Common mode rejection ratio (CMRR) > 40 dB

Power supply (for full performance) P48 (Phantom Power)

Current consumption 3.5 mA

Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Weight 109 g (3.8 oz)

Microphone diameter 19 mm (0.75 in)

Capsule diameter 19 mm (0.75 in)

Microphone length 35 mm (1.38 in)

Maximum output voltage, RMS 2.2 V

Polarity +V at pin 2 for positive sound pressure

Temperature range -40°C to 45°C (-40°F to 113°F)

Relative humidity (RH) Up to 90%

Matching tolerance (frequency response and sensitivity) ±1 dB

Phase deviation for kit < 10°
