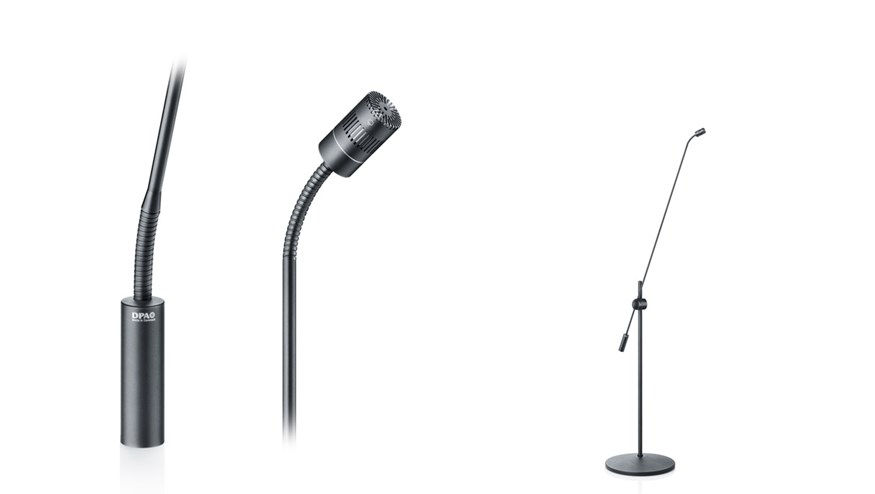

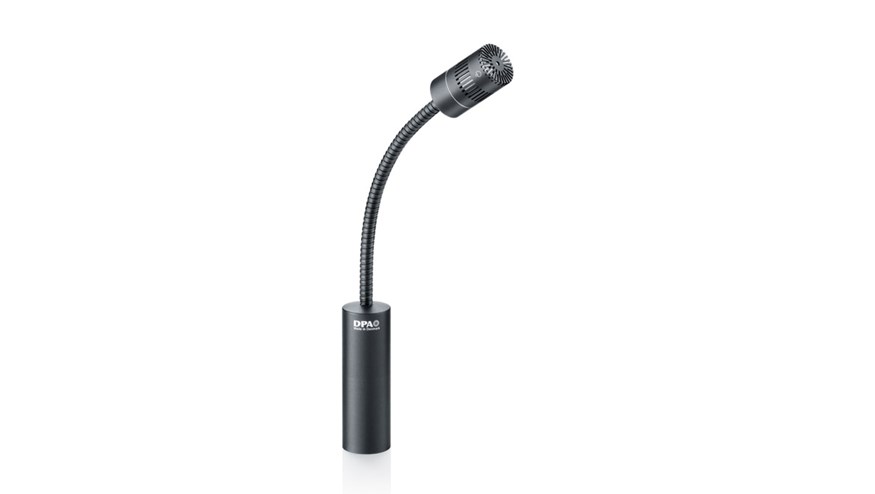

4018F Gooseneck Microphone

This solution uses the MMC4018 Cardioid Microphone Capsule, which has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. A complete cardioid microphone floor stand solution, offering a high-quality stage voice or instrument mic.

Accessories

DAO4010/4020 Microphone Cable with Slim XLR Connector for Pencil Microphone
MMP-FJS/FGS/FGT Floor Stand with Modular Active Boom for MMC Capsule
DUA0020 Foam Windscreen for Pencil Microphone, Ø19 mm, Length 56 mm (2.2 in)

Specifications

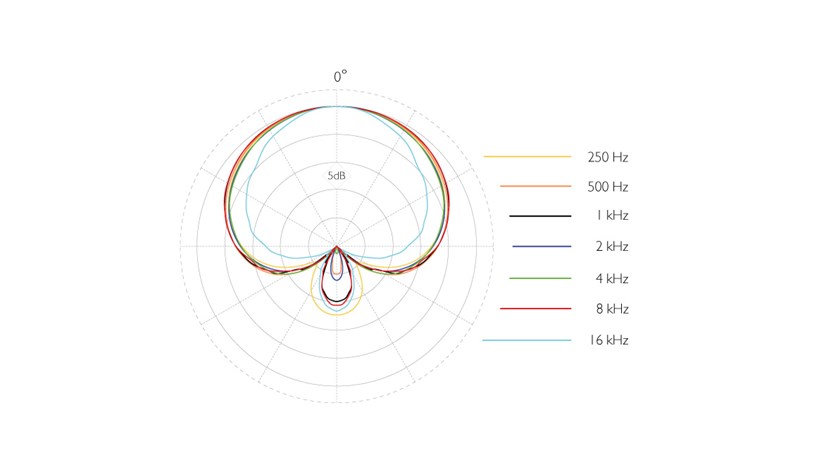

Polar pattern

Relative humidity (RH) Up to 90%

Output balance principle Impedance balancing

Sensitivity, nominal, ±2 dB at 1 kHz 12 mV/Pa; -38.4 dB re. 1 V/Pa

Matching tolerance (frequency response and sensitivity) ±1 dB

Phase deviation for kit < 10°

Max. SPL, THD 10% 142 dB SPL peak

Minimum load impedance 2

Temperature range -40°C to 45°C (-40°F to 113°F)

Frequency response 20 Hz - 20 kHz

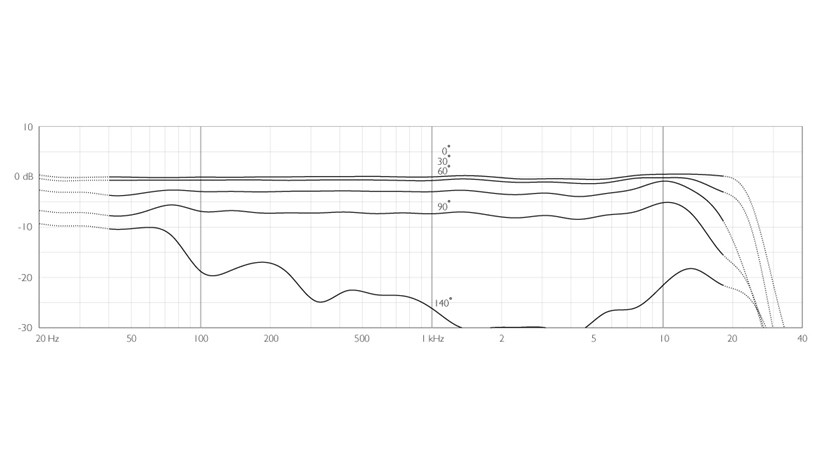

Frequency response graph

Maximum output voltage, RMS 2.2 V

Dynamic range Typ. 121 dB

Power supply (for full performance) P48 (Phantom Power)

Current consumption 3.5 mA

Rated output impedance 100 Ω

Equivalent noise level, ITU-R BS.468-4 Typ. 23 dB

Effective frequency range, ±2 dB, at 30 cm (11.8 in) 40 Hz - 18 kHz

Capsule diameter 19 mm (0.75 in)

Directional pattern Supercardioid

Cartridge type Pre-polarized condenser

Distortion, THD < 1% 134 dB SPL RMS, 137 dB SPL peak

Common mode rejection ratio (CMRR) > 40 dB

Cable drive capability 100 m (328 ft)

Principle of operation Pressure gradient

Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Equivalent noise level, A-weighted Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))

Polarity +V at pin 2 for positive sound pressure

Microphone diameter 19 mm (0.75 in)

Microphone length Capsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in)
