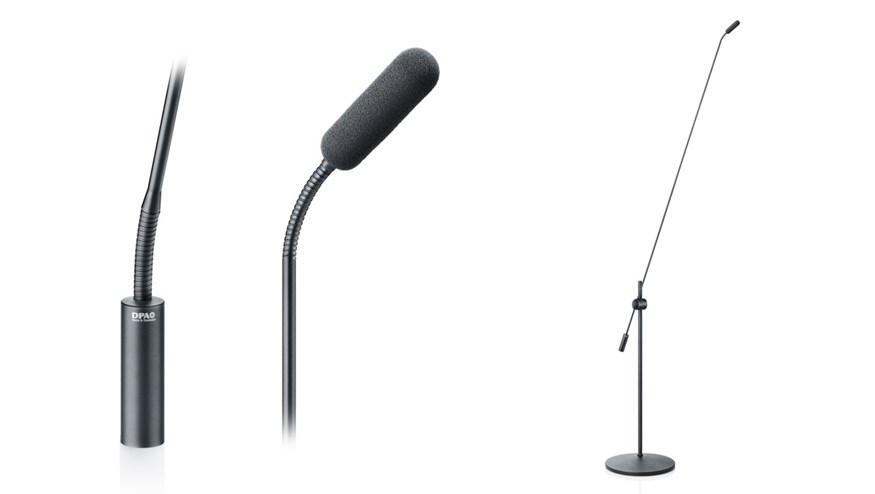

4098 Floorstand Microphone

A complete cardioid microphone floor stand solution, offering a high-quality stage voice or instrument mic. With very low noise and a high sensitivity, our supercardioid microphones offer the most clear, transparent, and natural sound available on the miniature mic market. The mics are capable of handling extremely high SPL before clipping. With a linear response, low distortion and an extremely large dynamic range, they sound great no matter how challenging the environment.

Accessories

DAO4010/4020 Microphone Cable with Slim XLR Connector for Pencil Microphone

Specifications

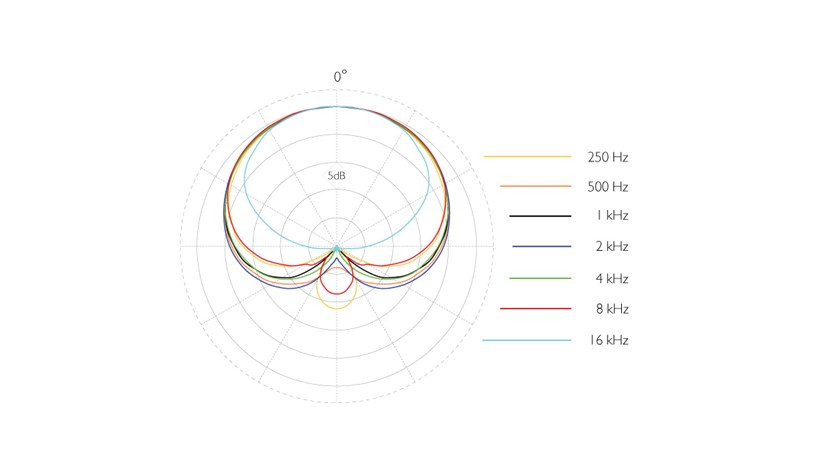

Polar pattern

Relative humidity (RH) Up to 90%

Sensitivity, nominal, ±3 dB at 1 kHz 16 mV/Pa; -36 dB re. 1 V/Pa

Output balance principle Signal balanced with XLR connector or DAD6001-BC XLR Adapter

Max. SPL, THD 10% 135 dB SPL peak

Minimum load impedance 2

Temperature range -40°C to 45°C (-40°F to 113°F)

Frequency response 20 Hz - 20 kHz

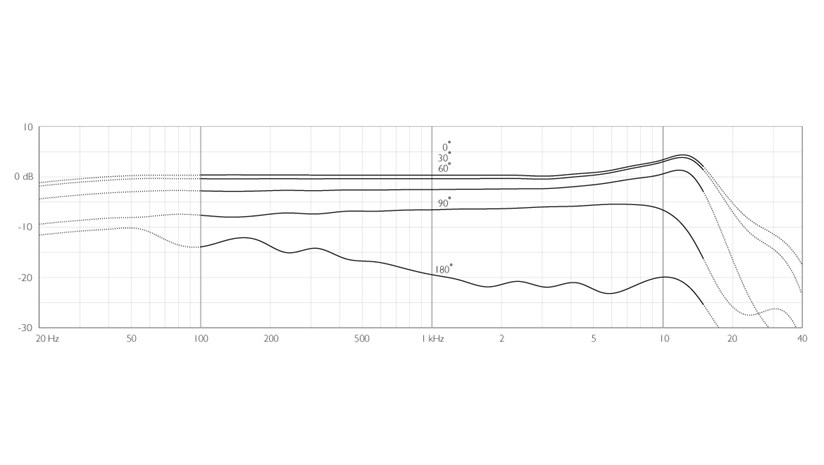

Frequency response graph

Dynamic range Typ. 110 dB

Power supply (for full performance) MicroDot: Min. 5 V to max. 10 V through DPA adapter for wireless systems or
P48 (Phantom Power) with DAD6001-BC XLR adapter
XLR-3M: P48 (Phantom Power)

Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Rated output impedance From MicroDot: 30 - 40 Ω. From XLR connector or DAD6001-BC XLR Adapter: 100 Ω

Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)

Directional pattern Supercardioid

Cartridge type Pre-polarized condenser

Distortion, THD < 1% 130 dB SPL RMS, 133 dB SPL peak

Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

Cable drive capability MicroDot: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
XLR-3M: Up to 100 m (328 ft)

Effective frequency range ±2 dB, at 20 cm (7.9 in) MicroDot: 80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz
XLR-3M: 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz

Principle of operation Pressure gradient

Connector MicroDot or XLR-3M

Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))

Polarity +V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter)

Weight Microdot:
16 cm (6 in): 12 g (0.4 oz)
28 cm (11 in): 20 g (0.7 oz)
43 cm (17 in): 28 g (1.0 oz)
77 cm (30 in): 55 g (1.9 oz)
122 cm (48 in): 67 g (2.4 oz)

XLR-3M:
20 cm (8 in): 75 g (2.6 oz)
32 cm (13 in): 80 g (2.8 oz)
47 cm (18 in): 88 grams (3.1 oz)
77 cm (30 in): 115 grams (4.1 oz)
122 cm (48 in): 127 grams (4.5 oz)

Microphone diameter 5.7 mm (0.22 in)

Microphone length Microdot: 16 cm (6 in), 28 cm (11 in), 43 cm (17 in), 77 cm (30 in), 122 cm (48 in)
XLR-3M: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in).
