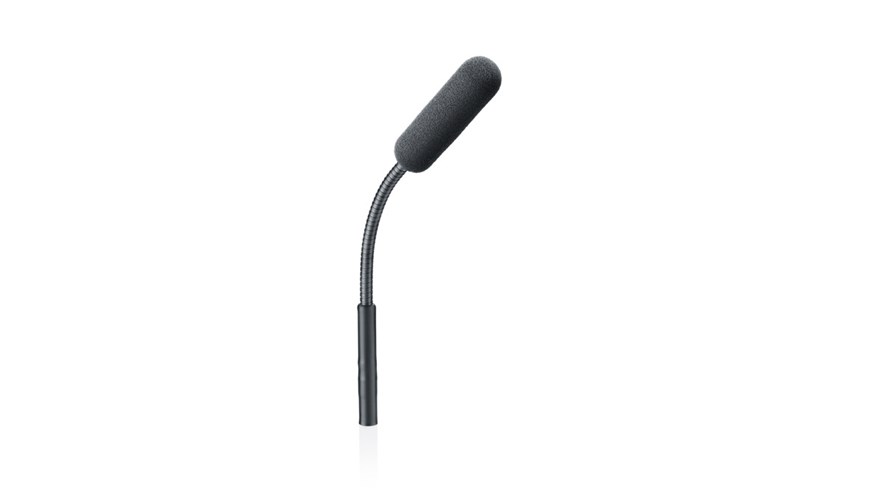

4098 Gooseneck Microphone

The 4098 gooseneck microphone, in any of its configurations, delivers high intelligibility and controlled directionality as well as efficient rejection of background noise and radio frequency interference. They are often the preferred mic to turn to when high speech intelligibility is paramount - for example at parliaments where multiple languages are to be simultaneous interpreted and the interpreters must catch every word and nuance in a split second to deliver the perfect translation.

Coming soon with MicroLock

Accessories

CM1618B90 MicroLock Extension Cable, 1.6 mm, 1.8 m (5.9 ft)
CM22 MicroLock Extension Cable, 2.2 mm, 1.8 m
CMX2218B90 MicroLock Podium Extension Cable, 19 mm (.75 in) housing, 1.8m
DAO4010/4020 Microphone Cable with Slim XLR Connector for Pencil Microphone
MMP-FJS/FGS/FGT Floor Stand with Modular Active Boom for MMC Capsule
TSM4001 Table Shock Mount for Gooseneck Microphone

Specifications

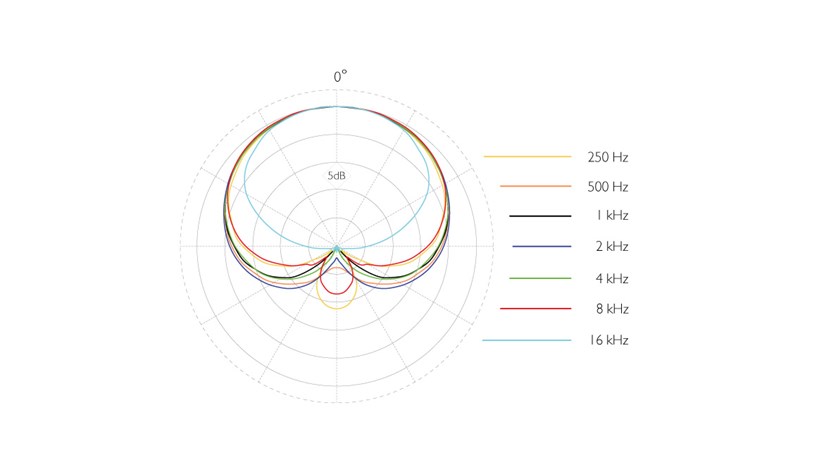

Polar pattern

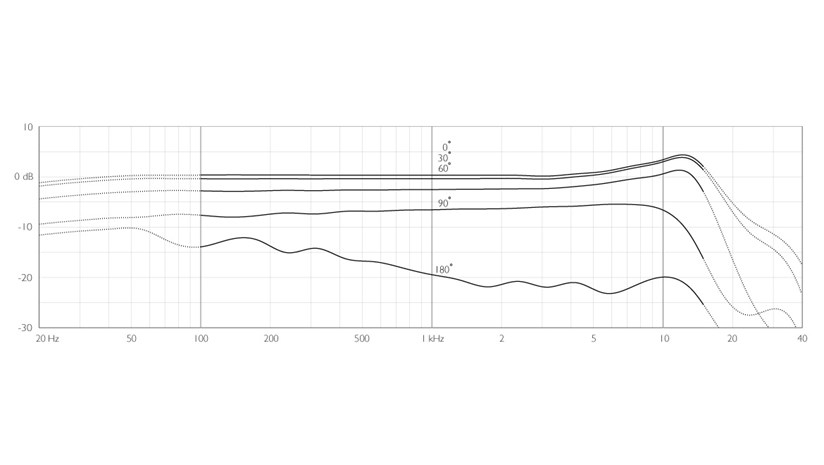

Frequency response graph

Directional pattern Supercardioid

Principle of operation Pressure gradient

Cartridge type Pre-polarized condenser

Frequency response 20 Hz - 20 kHz

Effective frequency range ±2 dB, at 20 cm (7.9 in) MicroDot: 80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz
XLR-3M: 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz

Sensitivity, nominal, ±3 dB at 1 kHz 16 mV/Pa; -36 dB re. 1 V/Pa

Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))

Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)

Distortion, THD < 1% 130 dB SPL RMS, 133 dB SPL peak

Dynamic range Typ. 110 dB

Max. SPL, THD 10% 135 dB SPL peak

Rated output impedance From MicroDot: 30 - 40 Ω. From XLR connector or DAD6001-BC XLR Adapter: 100 Ω

Minimum load impedance 2

Cable drive capability MicroDot: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
XLR-3M: Up to 100 m (328 ft)

Output balance principle Signal balanced with XLR connector or DAD6001-BC XLR Adapter

Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

Power supply (for full performance) MicroDot: Min. 5 V to max. 10 V through DPA adapter for wireless systems or
P48 (Phantom Power) with DAD6001-BC XLR adapter
XLR-3M: P48 (Phantom Power)

Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Connector MicroDot or XLR-3M

Weight Microdot:
16 cm (6 in): 12 g (0.4 oz)
28 cm (11 in): 20 g (0.7 oz)
43 cm (17 in): 28 g (1.0 oz)
77 cm (30 in): 55 g (1.9 oz)
122 cm (48 in): 67 g (2.4 oz)

XLR-3M:
20 cm (8 in): 75 g (2.6 oz)
32 cm (13 in): 80 g (2.8 oz)
47 cm (18 in): 88 grams (3.1 oz)
77 cm (30 in): 115 grams (4.1 oz)
122 cm (48 in): 127 grams (4.5 oz)

Microphone diameter 5.7 mm (0.22 in)

Microphone length Microdot: 16 cm (6 in), 28 cm (11 in), 43 cm (17 in), 77 cm (30 in), 122 cm (48 in)
XLR-3M: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in).

Polarity +V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter)

Temperature range -40°C to 45°C (-40°F to 113°F)

Relative humidity (RH) Up to 90%
