4166 Omnidirectional Flex Headsets and Earsets

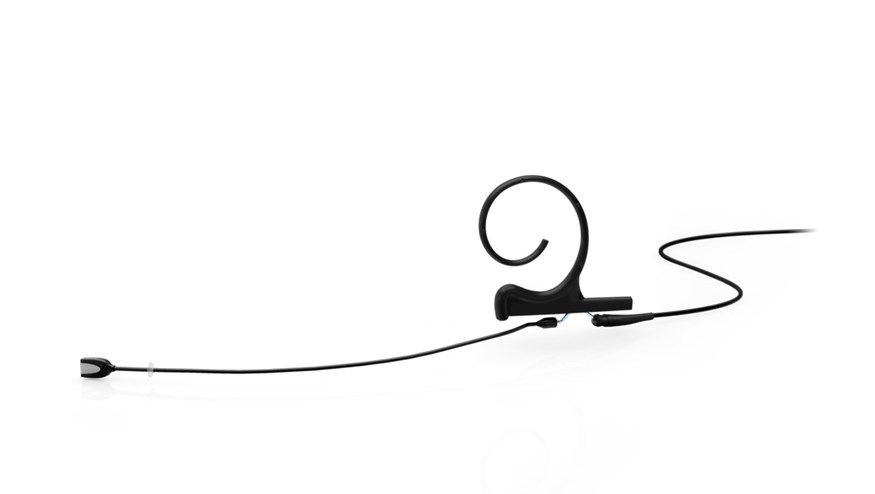

The 4166 Earset Mic combines the Slim Omni Capsule on the Flex earset. It features the same capsule as the 4060 Omnidirectional Miniature Microphone, but in a different housing. It delivers sound on par with the legacy 4060 on a lightweight and flexible system.

Coming with CORE+ and MicroLock in Q2 2025.

Accessories

DUA0532 Headset Clip and Strain Relief for Headset Microphone
DUA0592 Makeup Cover for Slim Headset Microphone
DUA0531B/C/F Foam Windscreen for Slim Miniature Microphones
AIR1 Universal Miniature Fur Windscreen

Specifications

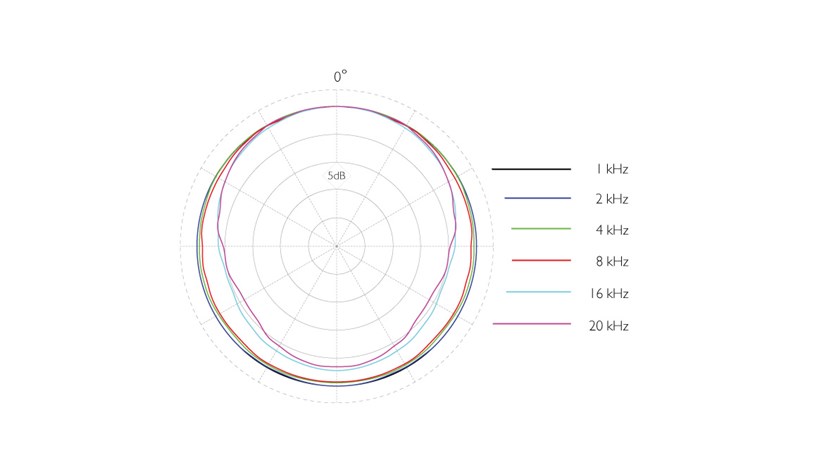

Polar pattern

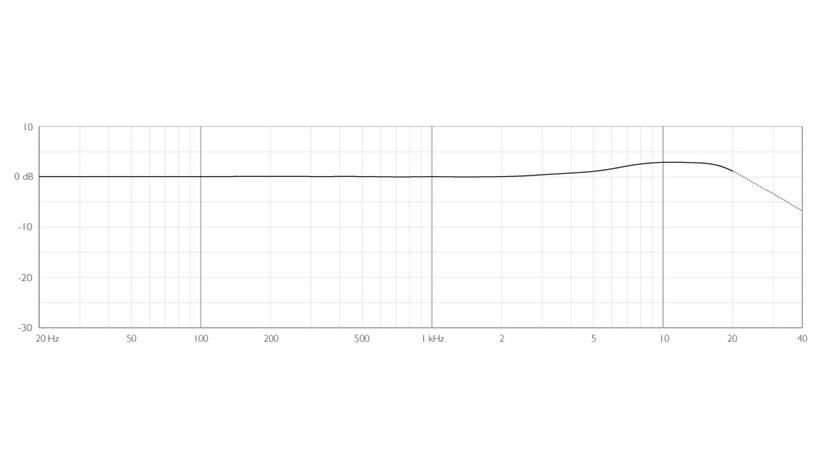

Frequency response graph

Directional pattern Omnidirectional

Principle of operation Pressure

Cartridge type Pre-polarized condenser

Frequency response 20 Hz - 20 kHz

Effective frequency range ±2 dB 40 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHz

Sensitivity, nominal, ±3 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))

Equivalent noise level, ITU-R BS.468-4 Typ. 38 dB (max. 40 dB)

Distortion, THD < 1% 134 dB SPL RMS, 137 dB SPL peak

Dynamic range Typ. 111 dB

Max. SPL, THD 10% 144 dB SPL peak

Rated output impedance From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω

Cable drive capability Up to 300 m (984 ft) with DAD6001-BC XLR Adapter

Output balance principle Signal balanced with DAD6001-BC XLR Adapter

Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter

Power supply (for full performance) For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Connector MicroDot

Weight Microphone boom: 0.8 g (0.03 oz). Earhook: 1.1 g (0.04 oz). Cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz)

Microphone diameter 5.4 mm (0.21 in)

Microphone length Boom length: Normal: 120 mm (4.7 in), Medium: 100 mm (3.9 in)

Cable length 1.3 m (4.3 ft)

Cable diameter 1.6 mm (0.06 in)

Polarity Positively increasing sound pressure produces positive going voltage on MicroDot pin

Electromagnetic compatibility (EMC) Fully compatible

Temperature range -40°C to 45°C (-40°F to 113°F)

Relative humidity (RH) Up to 90%
