6066 Omnidirectional Headset Subminiature Mic

The capsule of the 6066 CORE Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability – three qualities that truly matter. By shrinking our CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

Now available with MicroLock® – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

Accessories

DUA9301-B/F/C/W Microphone Grid for 6060/6061/6066
DUA9501 Makeup Cover for 6060/6061/6066
DUA9531 Subminiature Foam Windscreen
AIR1 Universal Miniature Fur Windscreen

Specifications

Polar pattern

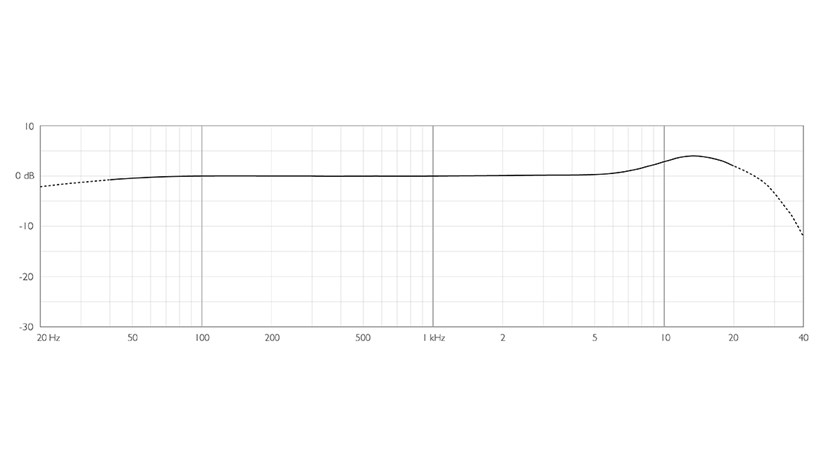

Frequency response graph

Directional pattern Omnidirectional

Principle of operation Pressure

Cartridge type Pre-polarized condenser

Frequency response 20 Hz - 20 kHz

Effective frequency range ±2 dB 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

Sensitivity, nominal, ±2.4 dB at 1 kHz 6 mV/Pa; -44 dB re. 1 V/Pa

Equivalent noise level, A-weighted Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))

Distortion, THD < 0.5% 122 dB SPL RMS, 125 dB SPL peak

Distortion, THD < 1% 125 dB SPL RMS, 128 dB SPL peak

Dynamic range Typ. 102 dB

Max. SPL, THD 10% 144 dB SPL peak

Rated output impedance From MicroDot: 30 - 40 Ω. From DAD6001-BC: 100 Ω

Cable drive capability Up to 300 m (984 ft) with DAD6001-BC XLR adapter

Power supply (for full performance) For wireless systems Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V

Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

Connector MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack

Weight 11 g (0.40 oz) incl. Cable and MicroDot connector

Microphone head size (h x w x d) 3.4 / 8.9 mm (0.13 / 0.35 in)

Capsule diameter 3 mm (0.12 in)

Cable length 1.3 m (4.3 ft)

Polarity Positively increasing sound pressure produces positive going voltage on MicroDot pin

Temperature range -40°C to 45°C (-40°F to 113°F)

Relative humidity (RH) Up to 90%
