d:facto™ 4018VL Linear Vocal Microphone

The d:facto™ series brings true studio sound to the live stage and broadcasting studio. This version is extremely linear, engineered specifically for audio engineers who prefer setting their own unique impression on the final sound. . The modular nature of the d:facto™ series allows you to switch the capsule as well as the adapter, making it the most flexible vocal microphone available on the market.

Accessories

FAADPA2B Handle for d:facto™ Vocal Microphone (XLR)
FAASE2-ewB SE2-ew d:facto™ Adapter for Sennheiser systems
FAASE5B SE5 d:facto™ Adapter for Sennheiser systems
SL1 d:facto™ adapter for Shure, Sony, Lectrosonics, Wisycom systems
WI2 d:facto™ Adapter for Wisycom systems
MMC4018VL d:facto™ 4018VL Linear Vocal Microphone Capsule
MMC4018V d:facto™ 4018V Softboost Vocal Microphone Capsule
DUA0710 Microphone Grid for Vocal Microphone
DUA0703 Foam Windscreen for Vocal Microphone

Specifications

Polar pattern

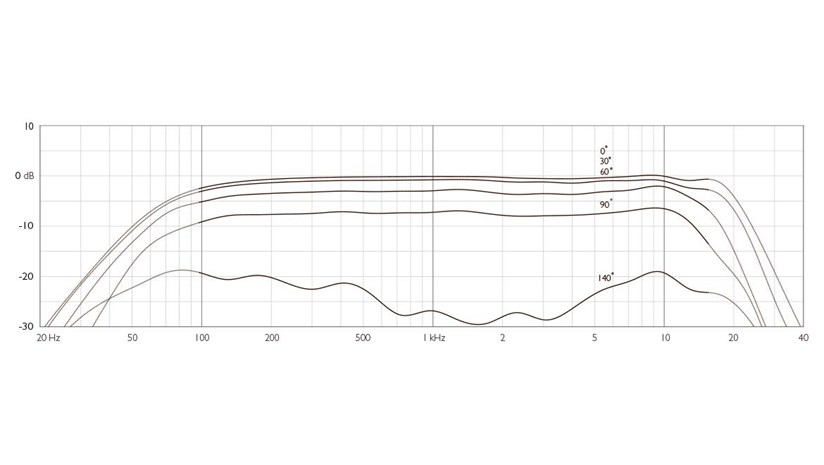

Frequency response graph

Directional pattern Supercardioid

Principle of operation Pressure gradient

Cartridge type Pre-polarized condenser

Frequency response 20 Hz - 20 kHz

Effective frequency range ±2 dB, at 12 cm (4.7 in) 40 Hz - 16 kHz

Sensitivity, nominal, ±2 dB at 1 kHz 5 mV/Pa; -46 dB re. 1 V/Pa
2 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless

Equivalent noise level, A-weighted Typ. 19 dB(A) re. 20 µPa (max. 21 dB(A))

Distortion, THD < 1% 136 dB SPL RMS, 139 dB SPL peak

Dynamic range Typ. 120 dB

Max. SPL, THD 10% 160 dB SPL peak

Rated output impedance 100 Ω

Cable drive capability 100 m (328 ft)

Output balance principle Impedance balancing with Active Drive

Common mode rejection ratio (CMRR) > 50 dB at 1 kHz

Power supply (for full performance) P48 (Phantom Power)

Current consumption Max 2.0 mA

Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Weight 309 g (10.9 oz)

Microphone diameter 52 mm (2.05 in)

Capsule diameter 19 mm (0.75 in)

Microphone length 205 mm (8.1 in)

Maximum output voltage, RMS 8 V

Polarity +V at pin 2 for positive sound pressure

Temperature range -40°C to 45°C (-40°F to 113°F)

Relative humidity (RH) Up to 90%
