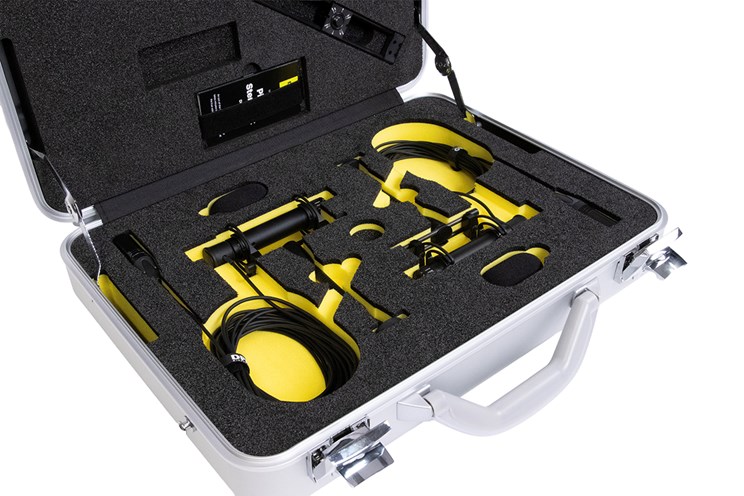

DPK2015 Piano Stereo Kit

DPK2015 is an out-of-the-box miking solution that takes a minute to install and ensures that the true voice of the piano shines. By bundling components and specifying a workflow, this kit is a turnkey stereo solution for piano miking.

The DPK2015 is designed for versatile mounting: inside or outside the piano, lid open or closed.

Accessories

DAO4010/4020 Microphone Cable with Slim XLR Connector for Pencil Microphone
GM1500 Gooseneck Mount for Pencil Microphone
SB0400/SBS0400 Lightweight Stereo Boom for Pencil Microphone
DUA0020 Foam Windscreen for Pencil Microphone, Ø19 mm, Length 56 mm (2.2 in)

Specifications

Polar pattern

Frequency response graph

Directional pattern Wide cardioid

Principle of operation Pressure gradient

Cartridge type Pre-polarized condenser

Frequency response 20 Hz - 20 kHz

Effective frequency range, ±2 dB, at 30 cm (11.8 in) 40 Hz to 18 kHz

Sensitivity, nominal, ±2 dB at 1 kHz 12 mV/Pa

Equivalent noise level, A-weighted Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))

Distortion, THD < 1% 147 dB SPL, 150 dB SPL peak

Dynamic range Typ. 132 dB

Max. SPL, THD 10% 153 dB SPL peak

Rated output impedance 60 Ω

Cable drive capability 100 m (328 ft)

Output balance principle Impedance balancing with Active Drive

Common mode rejection ratio (CMRR) > 60 dB

Power supply (for full performance) P48 (Phantom Power)

Current consumption 0.7 mA

Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Weight 83 g (2,9 oz)

Microphone diameter 19 mm (0.75 in)

Capsule diameter 17 mm (0.67 in)

Microphone length 94 mm (3.7 in)

Maximum output voltage, RMS 8.7 V (21 dBu)

Polarity +V at pin 2 for positive sound pressure

Temperature range -40°C to 45°C (-40°F to 113°F)

Relative humidity (RH) Up to 90%
