4018 Supercardioid Microphone

Key features

• Low noise and high sensitivity

• Highly directional for high isolation

• Most controlled supercardioid shape

• Uniform, frequency independent directionality

• Modular flexibility

Highly-directional supercardioid pattern

Designed for a broad range of long-distance broadcast, ENG and film miking applications, such as booming, dialogue, interview and table or podium use, the 4018 Supercardioid Microphone offers superb flexibility through modular accessories.

This microphone is part of our flexible pencil mic series. It has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

Combine it with the preamp of your choice

At any time, and with no tools needed, it is possible to transform the MMC4018 Supercardioid Microphone Capsule into a new configuration.

The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps in the series.

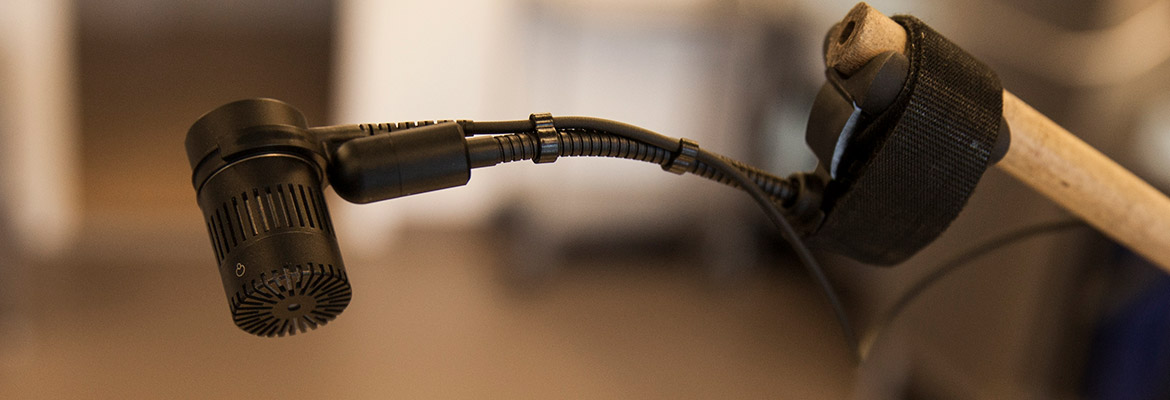

Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-GR/GS Preamp with Modular Active MicroLock Cable for Pencil Microphone, 3 m (9.8 ft) (MMP-GR, MMPMMP-G Modular Active Cable (MicroLock output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter. The MMP-G, together with the GSM4000 Gooseneck Shock Mount, can be used for anything from very lightweight booming applications to very high-end instrument miking using the 4099 series of instrument mounting options.

4018A Supercardioid Microphone

The 4018A Supercardioid Microphone is designed for a broad range of music recording and broadcast / ENG / film long-distance miking applications. It can be used for booming, dialogue, interview and table or spot-recording use.

4018C Compact Supercardioid Microphone

Similar to the 4018A, but with an even shorter length of only 6.4 cm (2.5 in), the 4018C Compact Supercardioid Microphone has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response. This is a great-sounding mic with a very small footprint. It is ideal for use as spot or hanging mic for orchestra recording situations.

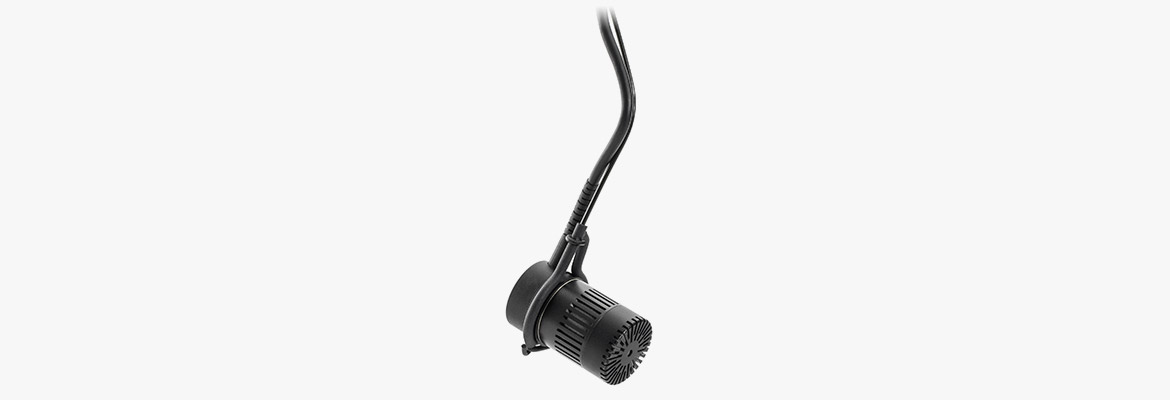

4018ER/ES Supercardioid Microphone

Ideal for unobtrusive or distant miking applications such as desktop or hanging use, the 4018ER/ES Supercardioid Microphone is an ultra-compact supercardioid microphone.

With a length of only 35 mm (1.38 in), the low-key appearance of the mic is as unique as its highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

The 4018ER/ES Supercardioid Microphone combines the MMC4018 Supercardioid Microphone Capsule with the MMP-ER/ES Modular Active Cable, XLR, an integrated cable solution with either side (4018ES) or rear (4018ER) cable entry. It is designed for a broad range of music recording and broadcast / ENG / film long-distance miking applications. It is ideal for use as spot or hanging mic for orchestra recording situations when used with the SM4000-C Suspension Mount, which is included in the package. This allows the 4018E to be hung from the ceiling and create precision spot miking of orchestra sections or ambience atmosphere.
